Relative Afferent Pupillary Defect (RAPD)

A relative afferent pupillary defect (RAPD), also called a Marcus Gunn pupil, is one of the most important signs in neuro-ophthalmology. It indicates that one eye's optic nerve or retina is transmitting visual signals less effectively than the other side. Detecting an RAPD helps localize problems to the anterior visual pathway and guides further workup.

Understanding the Pupil Light Reflex

Normal Response

When light enters the eye, the signal travels:

1. Through the retina (photoreceptors and ganglion cells)
2. Along the optic nerve
3. To the brainstem (pretectal nucleus)
4. To both pupils via the third cranial nerve

Because of this pathway, both pupils constrict equally when light shines in either eye. This is called the consensual light reflex.

What Happens with an RAPD

When one optic nerve or retina is damaged:

• The brain receives a weaker signal from the affected eye
• When light shines in the affected eye, the brain perceives less light
• Both pupils constrict less (because the stimulus appears dimmer)
• When comparing the two eyes, the affected side shows relative dilation when stimulated

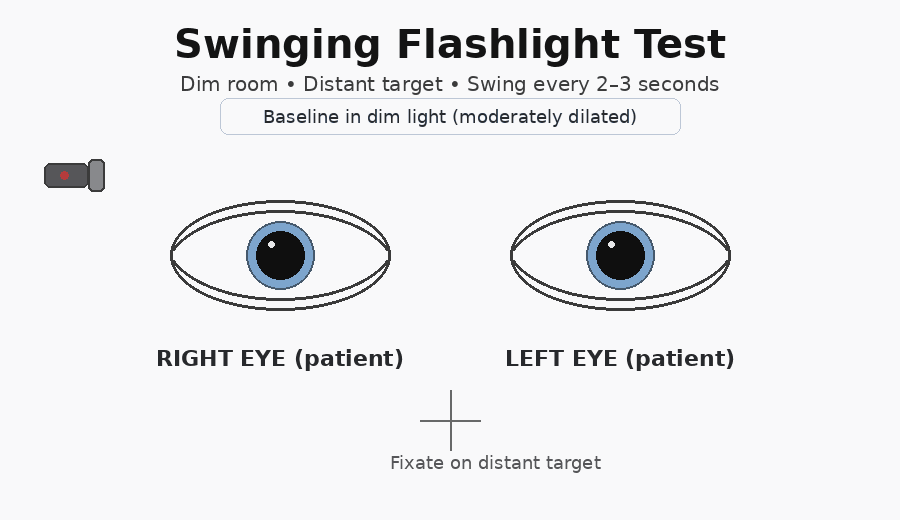

The Swinging Flashlight Test

Technique

1. Dim room lighting (pupils should be moderately dilated)
2. Have patient fixate on a distant target (prevents near response)
3. Shine bright light in right eye for 2-3 seconds, observe pupil size
4. Swing light to left eye, observe pupil immediately
5. Swing back to right eye, observe
6. Repeat several times, watching for asymmetry

What to Look For

Normal response:

• Both pupils stay equally constricted as light swings between eyes
• No escape or dilation when light moves to either eye

RAPD present:

• Affected pupil dilates (or constricts less) when light swings to it
• This is paradoxical—normally the pupil should constrict to light
• The pupil "escapes" when light shines in it

Common Errors

• Room too bright (pupils already constricted)
• Patient looking at the light (near response interferes)
• Moving light too quickly (not enough time to observe)
• Unequal light exposure time
• Anisocoria from other causes (use the better reacting pupil to judge)

Grading RAPD

RAPD can be quantified using neutral density filters:

Grade	Description
Trace	Subtle; requires careful observation
1+	Weak initial constriction, then dilation
2+	Initial stall, then dilation
3+	Immediate dilation
4+	Immediate dilation, no initial constriction

Quantitative measurement: Neutral density filters placed in front of the good eye can be used to "balance" the defect. The filter strength in log units estimates RAPD severity (e.g., 0.3, 0.6, 0.9 log units).

Common Causes of RAPD

Optic Nerve Diseases (Most Common)

Optic neuritis

• Classic cause; RAPD may persist even after vision recovers
• Strong RAPD in acute phase

Ischemic optic neuropathy

• Both anterior (AION) and posterior
• RAPD proportional to severity of damage

Compressive optic neuropathy

• From tumors, thyroid eye disease, aneurysms
• RAPD may develop gradually

Glaucoma

• Advanced asymmetric glaucoma
• RAPD indicates significant nerve fiber layer loss
• Subtle RAPD may be early sign in asymmetric disease

LHON

• Present when one eye more affected than other
• May change as disease progresses to second eye

Optic nerve trauma

• Direct injury or traumatic optic neuropathy
• RAPD helps assess severity

Retinal Diseases

Central retinal artery occlusion (CRAO)

• Produces significant RAPD
• Severe ischemic retinal damage

Large retinal detachment

• Extensive detachment affecting macula
• RAPD proportional to area involved

Central retinal vein occlusion (CRVO)

• Ischemic type produces RAPD
• Non-ischemic type usually does not

Severe macular disease

• Only if extensive (AMD alone rarely causes RAPD)
• Large macular scars, extensive macular pathology

Chiasm and Tract

• Asymmetric chiasmal lesions (e.g., pituitary tumor affecting one nerve more)
• Optic tract lesions (contralateral RAPD)

What RAPD Does NOT Indicate

An RAPD will NOT occur with:

• Cataracts (even dense ones)
• Refractive error (needing glasses)
• Dry eye or corneal problems
• Amblyopia (usually)
• Vitreous hemorrhage
• Small retinal problems
• Bilateral symmetric optic nerve disease

This is clinically useful: if a patient has poor vision but no RAPD, the problem is likely anterior to the retina (media opacity) or bilateral and symmetric.

Clinical Significance

Why It Matters

1. Localizes the problem to the optic nerve or retina
2. Distinguishes organic from functional vision loss (no RAPD with malingering)
3. Quantifies asymmetry of damage
4. Monitors progression or recovery
5. Guides workup—RAPD suggests need for MRI, OCT, visual fields

RAPD with Normal Visual Acuity

Sometimes RAPD is present despite good acuity:

• Peripheral nerve fiber damage (acuity preserved)
• Recovered optic neuritis (RAPD persists)
• Asymmetric glaucoma
• Subtle ongoing damage

This is an important finding—don't dismiss RAPD just because acuity is good!

RAPD with Poor Vision and No Obvious Cause

If vision is poor but no RAPD is present:

• Consider bilateral symmetric disease
• Consider non-organic (functional) vision loss
• Consider media opacity (cataract, vitreous hemorrhage)
• Re-examine for subtle findings

Special Situations

Anisocoria (Unequal Pupils)

If pupils are already unequal in size:

• Watch the better-reacting pupil during swinging flashlight test
• RAPD is a relative function deficit, not size difference
• Document baseline anisocoria separately

Bilateral Optic Neuropathy

If both optic nerves are damaged:

• RAPD only shows the relative difference
• Symmetric bilateral disease may have no RAPD despite severe damage
• Each nerve assessed by examining the fellow eye's response

After Cataract Surgery

• Previous belief that cataract surgery affected RAPD is outdated
• RAPD testing remains valid after cataract surgery

Frequently Asked Questions

What does it mean if I have an RAPD?

It means one of your optic nerves or retinas is not sending signals as effectively as the other side. This is a finding that helps your doctor understand where the problem is and guides further testing.

Is RAPD permanent?

It depends on the cause. Some conditions (like optic neuritis) may show improvement in RAPD as you recover. Others (like after a stroke affecting the optic nerve) may leave permanent RAPD.

Can RAPD occur in both eyes?

By definition, RAPD indicates one side is worse than the other. If both optic nerves are equally damaged, there may be no detectable RAPD despite significant disease. The test compares the two sides.

Does RAPD affect my vision?

RAPD itself doesn't affect vision—it's a sign of underlying disease. The condition causing the RAPD is what affects your vision.

Why does my doctor check my pupils every visit?

Pupil testing, including the swinging flashlight test, is a quick and important way to monitor optic nerve function. Changes in RAPD can indicate improvement or worsening of underlying conditions.
